Temperature control systems ⇣

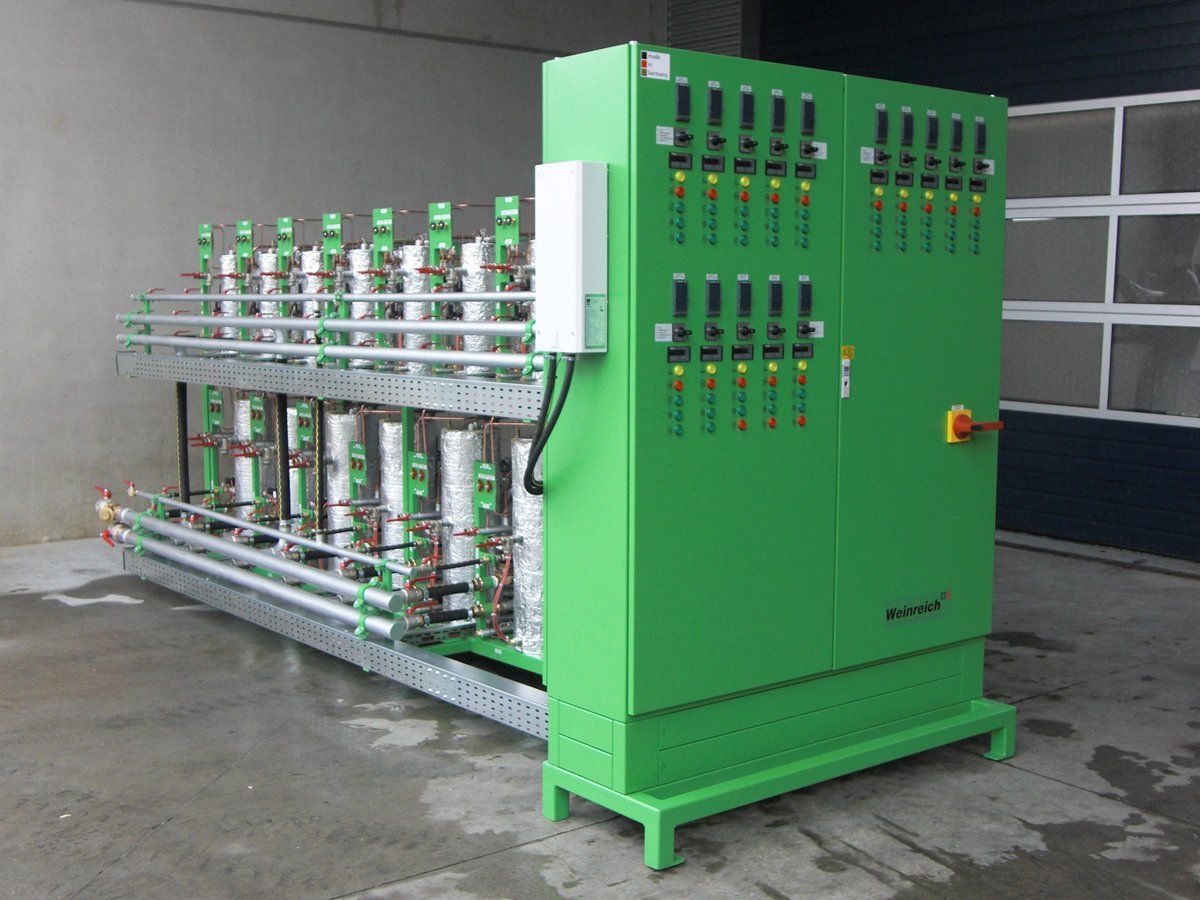

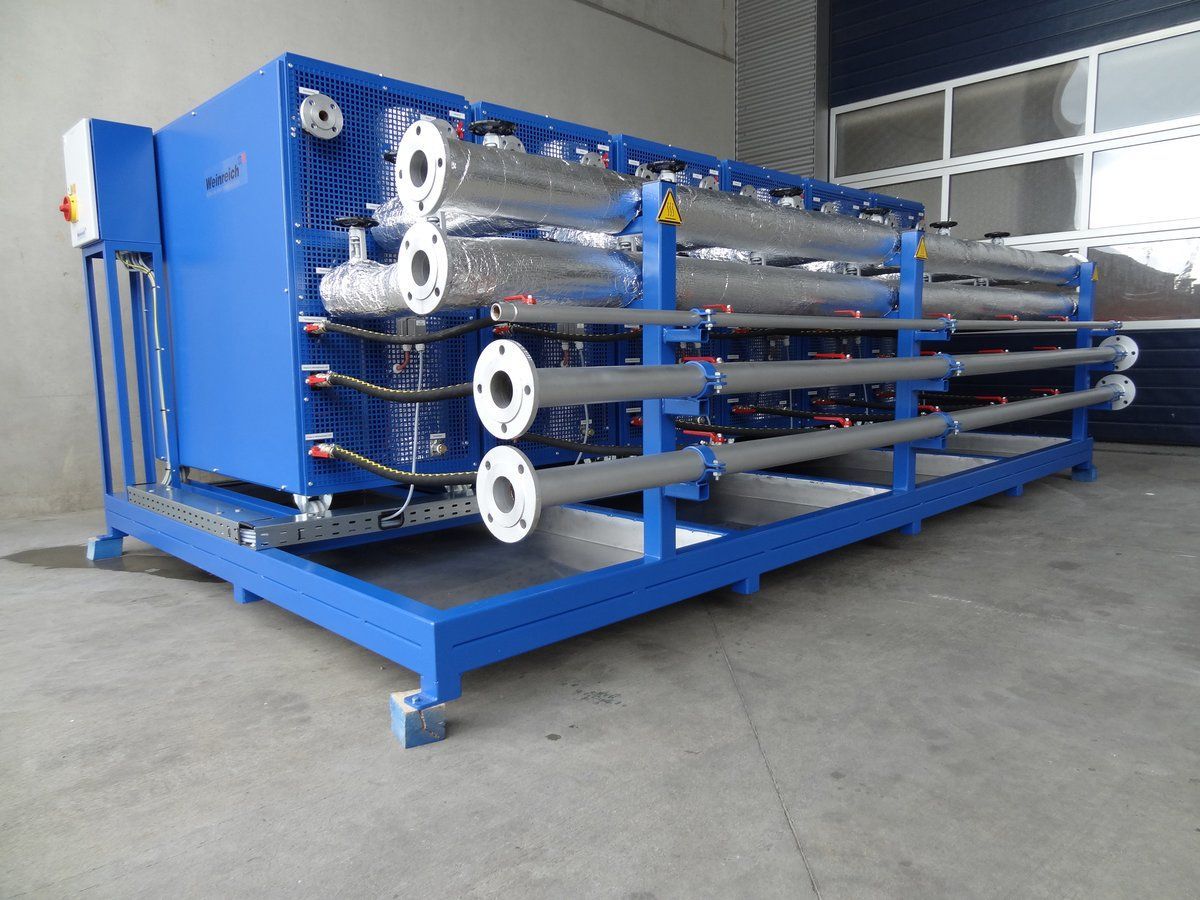

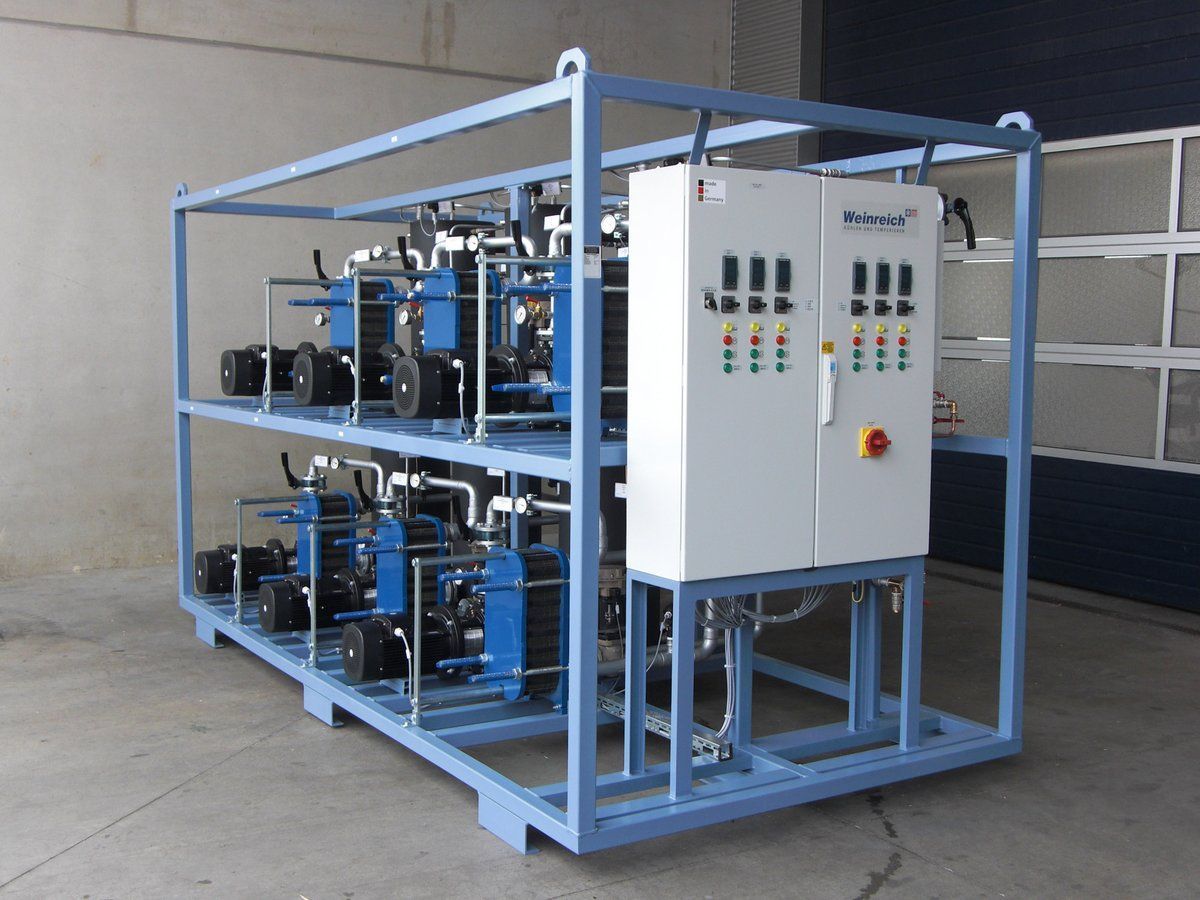

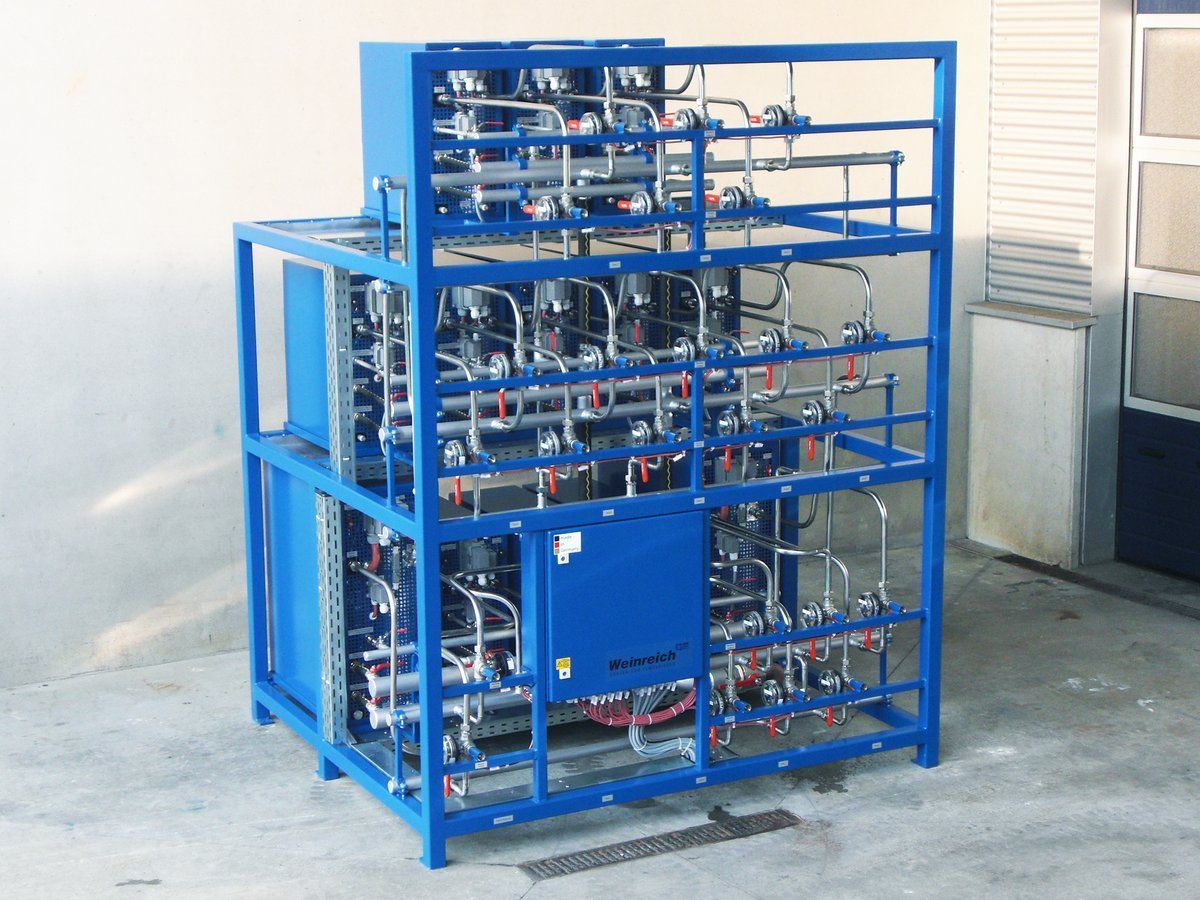

Temperature control systems for temperature control of several zones with different temperatures


WEINREICH temperature control systems are characterized by the central placement of the temperature control zones on a common base frame with a central cooling water inlet and outlet line as well as a central connection for separate water replenishment.

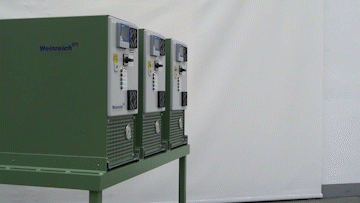

Optional reserve spaces can be provided for maintenance work or switchable replacement devices via 3-way valves in the consumer circuit. Furthermore, it is possible to mount the individual temperature control units on pull-out rails.

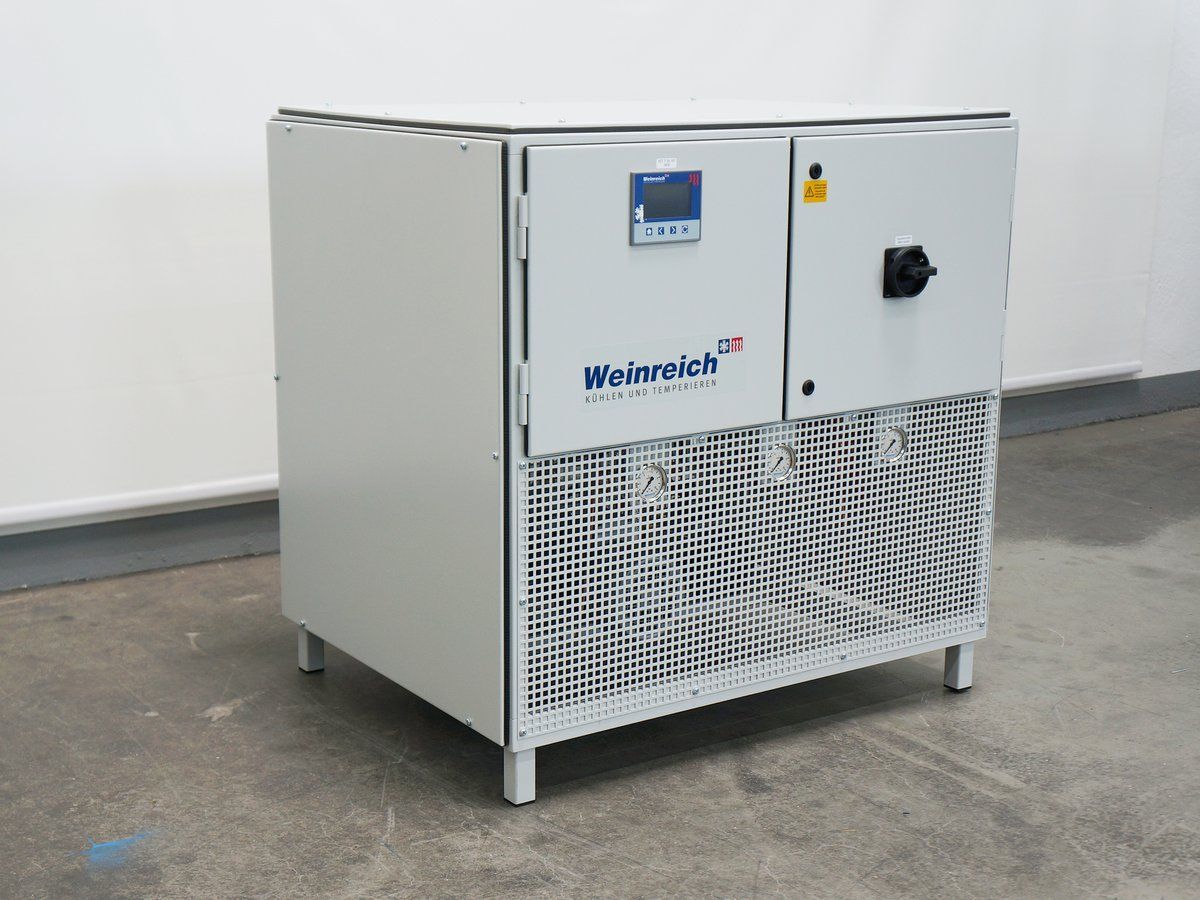

The system can be controlled via the individual zones, a central control cabinet or externally via various control connections such as Profibus, Profinet or similar. These systems can be expanded with make-up devices and water treatment systems.

  • Equipment

    • Microprocessor-controlled temperature controller, modular design
    • with PID behavior and digital setpoint and actual value display
    • alarm contacts, programmable
    • water-carrying parts made of non-corrosive material
    • stainless steel plate heat exchanger as a cooling exchanger
    • stainless steel screw-in heater integrated in the water flow pipe
    • safety thermostat with heating current shutdown
    • SSR semiconductor technology (from 18 kW heating output)
    • volume flow and system pressure display
    • automatic level monitoring via stainless steel filling level electrodes
    • for automatic water replenishment, either from the cooling water line or a separate
    • dirt trap connection in the cooling water inlet and separate water replenishment

  • Options

    • VP increased pump capacity
    • MK sealless pump with magnetic coupling
    • FU frequency-controlled pump
    • SP special voltage versions
    • VK increased cooling capacity
    • VKK calcification-free cooling
    • VA stainless steel versions
    • DA flow indicator
    • DK direct cooling
    • D steam-heated
    • HW hot-water heated

  • Special Design

    • automatic ventilation
    • customer-specific temperature control systems (e.g. impulse temperature control)
    • modular design and multi-circuit systems with central cooling water connections
    • devices with fully automatic function (e.g. heating and cooling time specifications)
    • manual and automatic tool blow-out devices
    • external and return temperature sensors with temperature control and/or Control
    • Profinet, Profibus, DeviceNet, CAN bus and PC/master computer connection
    • Interface communication for all common machine controls
    • Special paint finishes according to customer specifications
    • Housing made of stainless steel
    • Piping of all components that come into contact with media made of stainless steel
    • All devices are also available without cooling as heating devices or without heating as temperature control with process heat
