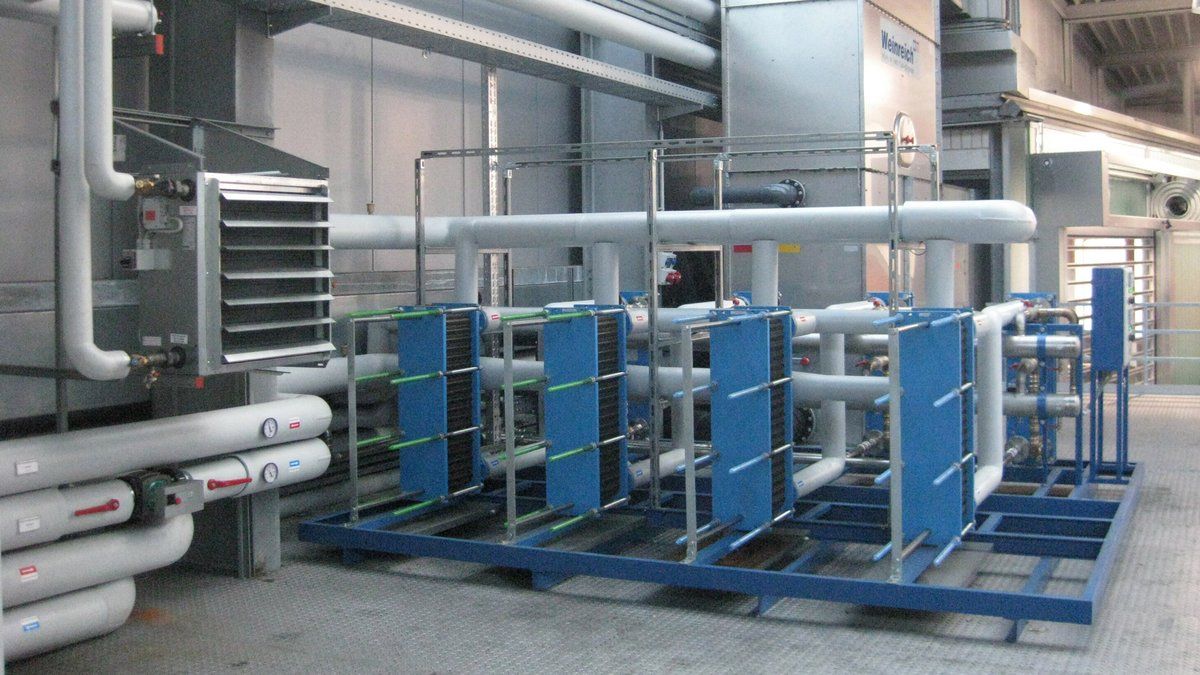

Plate exchanger compact blocks PK ⇣

Ready-to-connect compact devices with media pump, plate heat exchanger, control valve and electrical control mounted on a steel base frame for electroplating bath cooling for anodized and zinc electrolyte

View more

  • Equipment

    • Robust, low-wear media pumps, magnetically coupled or as a standard pump
    • Stainless steel plate heat exchanger, screwed made of stainless steel V4A, Hasteloy, titanium
    • EPDM, NBR or Viton seals
    • 3-way motor control valve with digital positioner
    • Pump fittings and piping made of PE, PP, PVC or stainless steel
    • Bath temperature sensor with sensor sleeve and connection set
    • Control switch cabinet with digital temperature controller with bath temperature display
    • robust steel base frame
    • maintenance-friendly design and simple operation

  • Environmental Requirements


  • Options

    • Compressed air double diaphragm pumps
    • redundant pumps
    • without media pump (oM)
    • motor control valves in stainless steel design
    • pneumatic control valves
    • pump dry-running protection with pressure switch
    • flushing device for pump mechanical seal
    • pressure gauge with diaphragm pressure gauge
    • collecting trays
    • special dimensions
    • special paintwork

  • Downloads

    Product data sheet PK (PDF)
